serial.h File Reference

#include <input.h>

Include dependency graph for serial.h:

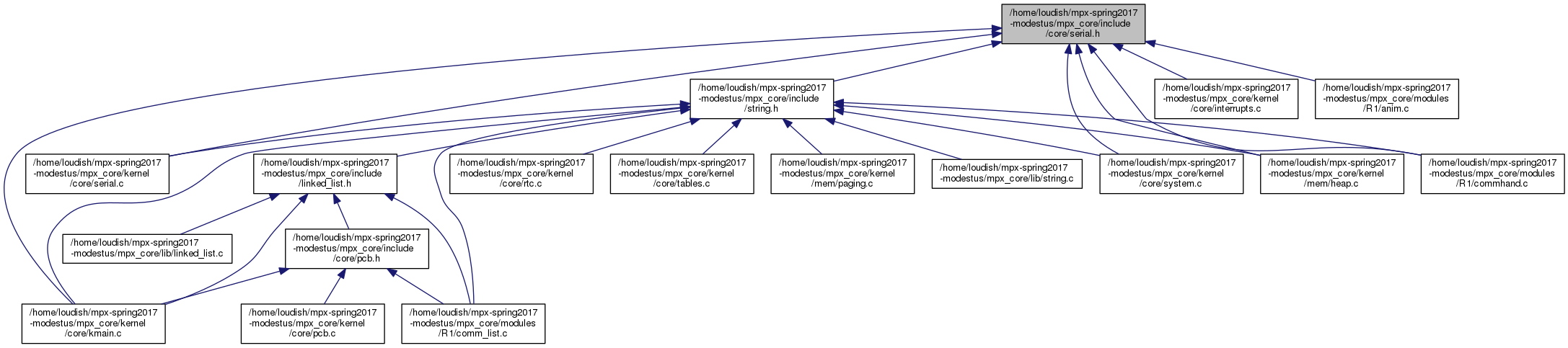

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	COM1   0x3f8
#define	COM2   0x2f8
#define	COM3   0x3e8
#define	COM4   0x2e8

Functions
int	init_serial (int device)
int	serial_println (const char *msg)
int	serial_print (const char *msg)
int	set_serial_out (int device)
int	set_serial_in (int device)
char *	serial_poll (char in_string[MAX_LENGTH])

Macro Definition Documentation

#define COM1   0x3f8

Definition at line 6 of file serial.h.

Referenced by kmain(), and serial_poll().

#define COM2   0x2f8

Definition at line 7 of file serial.h.

Referenced by do_isr().

#define COM3   0x3e8

Definition at line 8 of file serial.h.

#define COM4   0x2e8

Definition at line 9 of file serial.h.

Function Documentation

int init_serial

(

int

device

)

Definition at line 26 of file serial.c.

References inb, NO_ERROR, and outb.

{
  outb(device + 1, 0x00); //disable interrupts
  outb(device + 3, 0x80); //set line control register
  outb(device + 0, 115200/9600); //set bsd least sig bit
  outb(device + 1, 0x00); //brd most significant bit
  outb(device + 3, 0x03); //lock divisor; 8bits, no parity, one stop
  outb(device + 2, 0xC7); //enable fifo, clear, 14byte threshold
  outb(device + 4, 0x0B); //enable interrupts, rts/dsr set
  (void)inb(device);      //read bit to reset port
  return NO_ERROR;
}

char* serial_poll

(

char

in_string[MAX_LENGTH]

)

Definition at line 114 of file serial.c.

References BACKSPACE, clear_buff(), COM1, DELETE, ESC, in_string, inb, NEW_LINE, RETURN, return_cursor(), serial_print(), and strcpy().

Referenced by init_commhand(), and shutdownFunc().

                                              {
    //in_char is the character read from the register
    //out_char is that character with a null terminator appended on the end
    //length is the current size of the input
    //cursor_loc is the current location of the cursor in the input
    char in_char;
    char out_char[2];
    out_char[1] = '\0';
    int length = 0;
    int cursor_loc = 0;

    //polling for user input
    while (1) {

        if (inb(COM1+5)&1) {
            //the character is read from the register
            in_char = inb(COM1);
            out_char[0] = in_char;

            if (in_char == BACKSPACE) {
                if (length != 0) {
                    if (cursor_loc == length)
                    {
                        cursor_loc--;
                        in_string[cursor_loc] = '\0';
                        clear_buff();
                        serial_print(in_string);
                        length--;
                        return_cursor(cursor_loc, length);

                    }
                    else
                    {
                        cursor_loc--;
                        strcpy(&in_string[cursor_loc], &in_string[cursor_loc + 1]);
                        in_string[length - 1] = '\0';
                        clear_buff();
                        serial_print(in_string);
                        length--;
                        return_cursor(cursor_loc, length);
                    }
                }
            } else if (in_char == DELETE) {
            } else if (in_char == RETURN || in_char == NEW_LINE) {

                return in_string;
            } else if (in_char == ESC) {
                //buffer through ansi escape keys ([)
                in_char = inb(COM1);
                in_char = inb(COM1);

                if (in_char == 'A') {           //UP
                    clear_buff();
                    in_string[0] = '\0';
                    cursor_loc = 0;
                    length = 0;
                    //go backwards in command history
                } else if (in_char == 'B') {    //DOWN
                    clear_buff();
                    in_string[0] = '\0';
                    cursor_loc = 0;
                    length = 0;
                    //go forward in command history
                } else if (in_char == 'C') {    //RIGHT
                    if (cursor_loc < length) {
                        serial_print("\033[C");
                        cursor_loc++;
                    }
                } else if (in_char == 'D') {    //LEFT
                    if (cursor_loc > 0) {
                        serial_print("\033[D");
                        cursor_loc--;
                    }
                } else if (in_char == '3') {  //DEL
                    strcpy(&in_string[cursor_loc], &in_string[cursor_loc + 1]);
                    in_string[length] = '\0';
                    clear_buff();
                    serial_print(in_string);
                    length--;
                    return_cursor(cursor_loc, length);
                }

            } else {
                if (length < MAX_LENGTH - 1) {
                    if (length == cursor_loc) {
                        in_string[length] = in_char;
                        in_string[length + 1] = '\0';
                        serial_print(out_char);
                        cursor_loc++;
                        length++;
                    }
                    else {
                        int i = length;
                        in_string[length+1] = '\0';
                        for (; i >= cursor_loc; i--) {
                            in_string[i + 1] = in_string[i];
                        }
                        in_string[cursor_loc] = in_char;
                        length++;
                        cursor_loc++;
                        clear_buff();
                        serial_print(in_string);
                        return_cursor(cursor_loc, length);
                    }
                }
            }
        }
    }
    return in_string;
}

int serial_print

(

const char *

msg

)

Definition at line 59 of file serial.c.

References NO_ERROR, outb, and serial_port_out.

Referenced by clear_buff(), do_isr(), getTime(), init_commhand(), pcbFunc(), return_cursor(), serial_poll(), shutdownFunc(), and version().

{
  int i;
  for(i=0; *(i+msg)!='\0'; i++){
    outb(serial_port_out,*(i+msg));
  }
  if (*msg == '\r') outb(serial_port_out,'\n');
  return NO_ERROR;
}

int serial_println

(

const char *

msg

)

Definition at line 44 of file serial.c.

References NO_ERROR, outb, and serial_port_out.

Referenced by alloc(), clear_screen(), date(), do_isr(), do_reserved(), exec_comm(), help(), helpBlockPCB(), helpCreatePCB(), helpDate(), helpDeletePCB(), helpFunc(), helpGetDate(), helpGetTime(), helpLoadR3(), helpMCB(), helpMCBAllocate(), helpMCBFreeMem(), helpMCBInitHeap(), helpMCBIsEmpty(), helpMcbPrint(), helpMCBShowAllocated(), helpMCBShowFree(), helpPcb(), helpPcbPrint(), helpResumePCB(), helpSetDate(), helpSetPriority(), helpSetTime(), helpShowAllProcesses(), helpShowBlockedProcesses(), helpShowPCB(), helpShowReadyProcesses(), helpShutdown(), helpSuspendPCB(), helpTime(), helpUnblockPCB(), helpVersion(), idle(), klogv(), loadr3(), pcbFunc(), proc1(), proc2(), proc3(), proc4(), proc5(), setDate(), setTime(), shutdownFunc(), start_up_anim(), time(), and version().

{
  int i;
  for(i=0; *(i+msg)!='\0'; i++){
    outb(serial_port_out,*(i+msg));
  }
  outb(serial_port_out,'\r');
  outb(serial_port_out,'\n');
  return NO_ERROR;
}

int set_serial_in

(

int

device

)

Definition at line 87 of file serial.c.

References NO_ERROR, and serial_port_in.

Referenced by kmain().

{
  serial_port_in = device;
  return NO_ERROR;
}

int set_serial_out

(

int

device

)

Definition at line 75 of file serial.c.

References NO_ERROR, and serial_port_out.

Referenced by kmain().

{
  serial_port_out = device;
  return NO_ERROR;
}
